Description

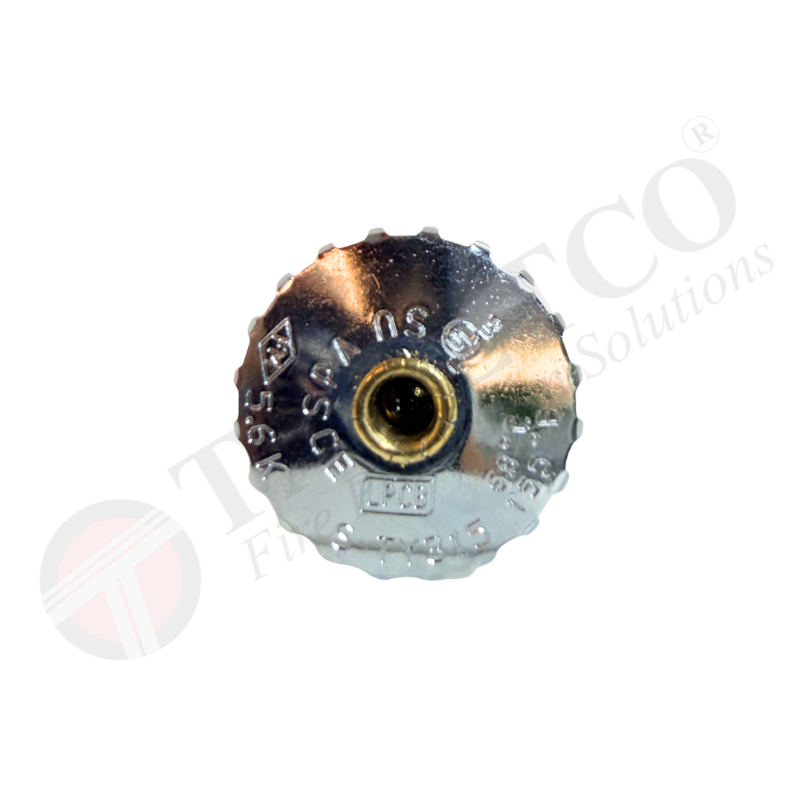

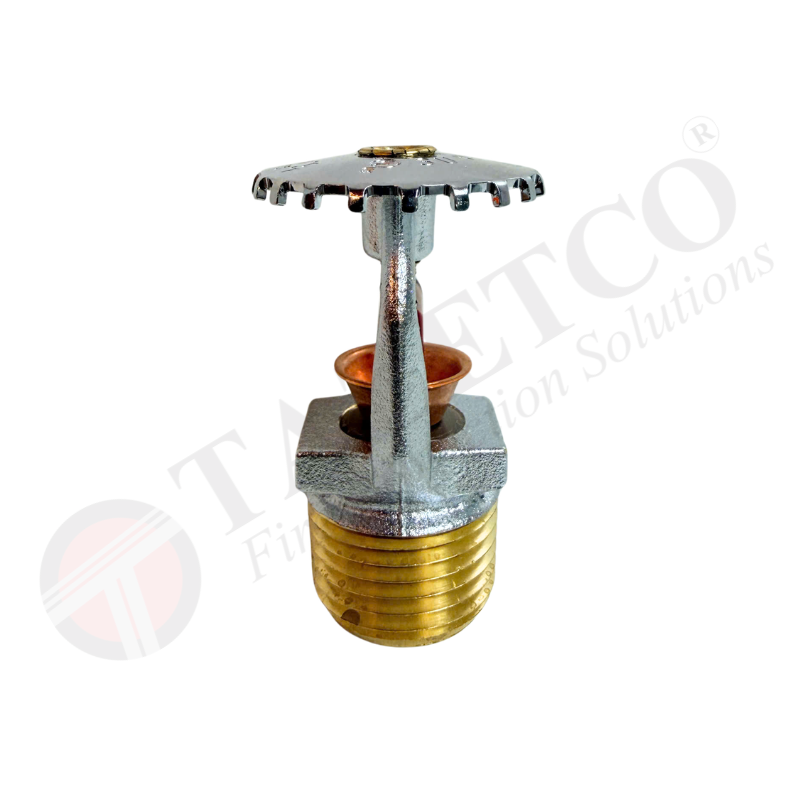

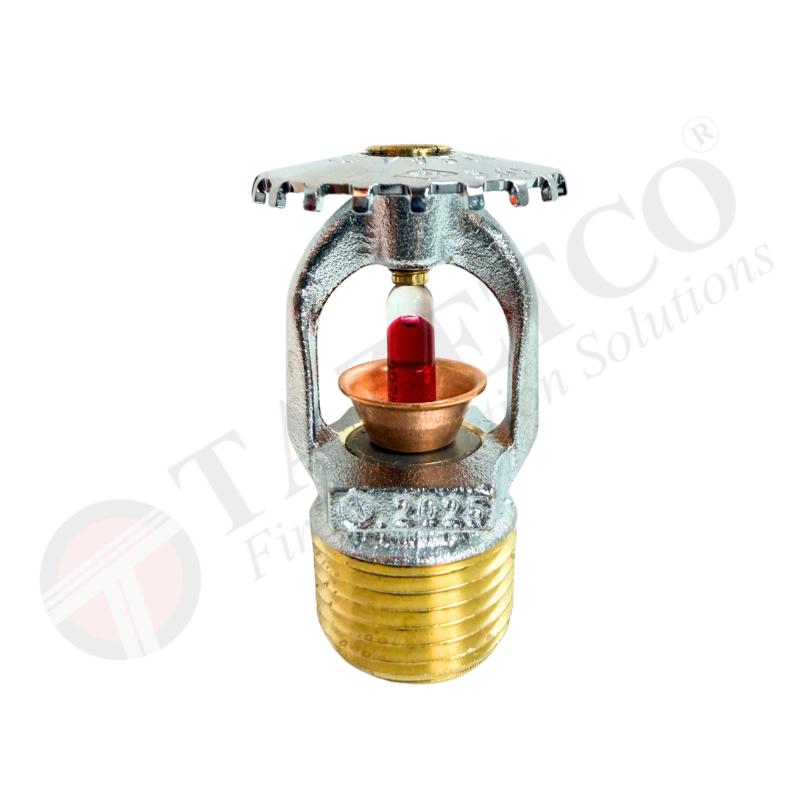

Sprinkler TYCO Upright TY315 (TY-B Series) – Upright Sprinkler K5.6
Overview:
The sprinkler TYCO TY315 is an upright fire sprinkler from the TY-B Series by TYCO (Johnson Controls). Designed as a Standard Response – Standard Coverage sprinkler with a discharge coefficient of K=5.6 (K80 Metric), it is widely utilized in automatic sprinkler systems in accordance with NFPA 13 standards.
This model is ideal for commercial, industrial, and residential applications across Light Hazard, Ordinary Hazard, and Extra Hazard occupancies.
Technical Specifications & Key Features:
– Orientation: Upright.
– Response Type: Standard Response (5mm glass bulb).
– Discharge Coefficient: K = 5.6 (80.6 L/min/√bar).
– Maximum Working Pressure: 175 psi (12.1 bar) or 250 psi (17.2 bar) depending on configuration.
– Thread Connection: 1/2″” NPT (DN15).
– Listings & Approvals: UL Listed, FM Approved, LPCB, VdS, C-UL Listed, …
– The TYCO TY315 offers various temperature ratings to suit different ambient operating conditions:
+ 135°F (57°C) – Orange Bulb.
+ 155°F (68°C) – Red Bulb.
+ 175°F (79°C) – Yellow Bulb.
+ 200°F (93°C) – Green Bulb.
+ 286°F (141°C) – Blue Bulb.
+ 360°F (182°C)– Purple Bulb.
– Available in Natural Brass, Chrome Plated, Signal White, Wax Coated, and custom finishes for enhanced corrosion resistance.
Applications:
The TYCO TY315 is engineered for a wide range of facilities, including:
– Manufacturing Plants.
– Warehouses & Logistics Hubs.
– Shopping Malls & Commercial Complexes.
– Office Buildings.
– Hotels & Hospitality Projects.
– Hospitals & Healthcare Facilities.
– Schools & Educational Institutions.
– Industrial Factories.
– Chemical & Petrochemical Facilities.
– NFPA-compliant Fire Protection Projects.
Key Advantages of the TY315 Sprinkler:
– Reliable Performance: Consistent discharge patterns in full compliance with NFPA standards.
– Proven Durability: Exceptional long-term reliability in automatic fire sprinkler systems when properly installed and maintained.
– Corrosion Protection: Flexible temperature options and corrosion-resistant coatings for harsh environments.
– Easy Maintenance: Standardized dimensions for straightforward replacement and system servicing.
– Global Recognition: Trusted and installed in thousands of major construction projects worldwide.
Why Choose TAZETCO?
TAZ Engineering Company Limited (TAZETCO) is a distributor of genuine TYCO fire protection products in Vietnam. With over 15 years of expertise in the design, supply, and installation of international-standard fire suppression systems, we provide reliable solutions tailored to your project requirements.
When purchasing the sprinkler TYCO from TAZETCO, you will get:
– 100% Genuine TYCO Products.
– Complete CO/CQ Documentation.
– Full Support with UL/FM Submittal Packages for Project Approval.
– Technical Consultation Aligned with NFPA Standards.
– Expert Product Selection Assistance Tailored to Specific Project Hazards.
– Fast & Nationwide Delivery Services.
